Model: XTS 5000 III
MPN: H18KEH9PW7AN
FCC ID: AZ489FT3804
Band: VHF Frequency: 136-174 MHz
RF Power: 6 watts
| ASTRO IMBE Digital Operation | APCO Packet Data Interface |
| Trunked Remote Monitor/Radio Trace | Fireground Voice/Channel Announcement |
| SmartZone Systems Operation | Hardware Multikey Encryption w/ OTAR |
| ASTRO 25 9600 Baud Trunking | Over the Air Provisioning (OTAP) |
| Enhanced Digital ID Display | SmartZone Omnilink MultiZone Operation |
| Trunked One Touch Status Message | ADP Encryption |
Motorola XTS5000 UHF 450-512 MHz P25 Digital Two Way Radio ASTRO25 GPS DES
Model: XTS 5000 III
MPN: H18SDH9PW7AN
FCC ID AZ489FT4864
Frequency Range 450-512 MHz
Encryption Algorithms ADP DES
Motorola IMPRES High Capacity Lithium Ion Battery
This unit was updated to a model 3 with full keypad
Motorola XTS5000 Model 3 UHF Project 25 (P25) interoperable Digital Radio Supported Trunking standards: clear or digital encrypted APCO P16 and APCO P25
Firmware: R20.50.10
DSP: R19.50.01
Tuning: R01.09.07
PSDT: R04.00.00
Bootloader: R03.50.00
FLASHport Memory: 8MB
Features and Benefits
GPS enabled using GPS Radio Speaker Microphone
APCO Project 25 (P25) ASTRO 25
Installed Encryption Algorithms ADP DES
Channel Capacity 1000
RF Output Power 5 watts
Channel Spacing 12.5 / 25 kHz
Maximum Frequency Separation Full Bandsplit
Trunking standards supported: clear or digital encrypted APCO P16 and APCO P25 Capable of SmartZone, SmartZone Omnilink, SmartNet and Conventional System Configurations and ASTRO25 Trunked Operation
Narrow and wide bandwidth
Digital Signaling (ASTRO & ASTRO 25)
SmartZone, SmartZone Omnilink, SmartNet, Conventional System Configurations and ASTRO25 Trunked Operation
Motorola ASTRO 25 XTS 5000 Model III Digital Hand Held Radio with GPS RSM and Motorola IMPRES High Capacity Lithium Ion Battery
Display
4 lines
2 lines of icons
12 characters per line LCD
Interchangeable display labels
Convenience Features
Time / Date
3x6 Keypad
Digital Caller ID
Standards FIPS 46-2, FIPS 140-2, FIPS 197
Motorola XTS5000 Model 3 UHF Public Safety Police Fire EMS P25 Radio
Includes several test channels. Additional programming is buyer responsibility.
Utilizes Windows-based Customer Programming Software (CPS) Supports USB and RS-232 communications. Built in FLASHport support.
Compatible with most MTS and XTS accessories
Free shipping. Quantity available upon request.
What's included?

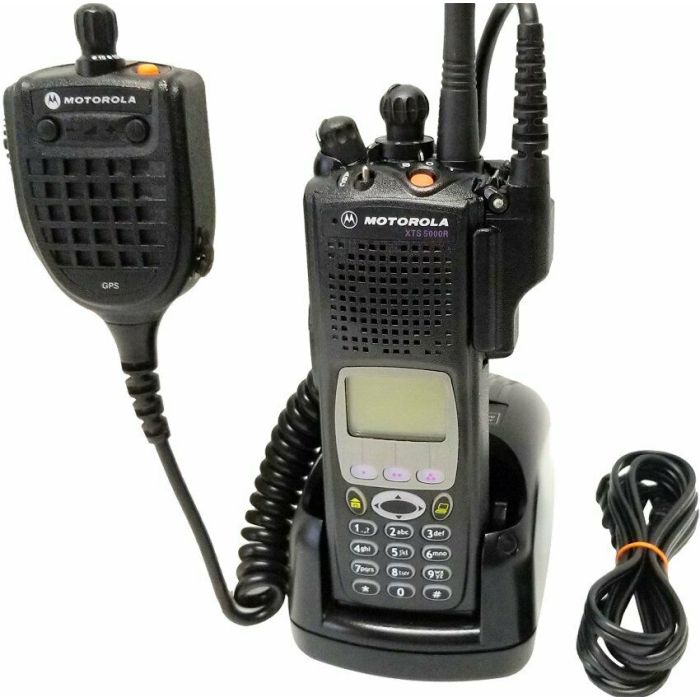

Motorola XTS5000 III UHF 450-512 MHz P25 Digital Radio, GPS RSM Remote Speaker Microphone, Antenna, IMPRES Charger and IMPRES Li-Ion Battery. See Pictures!
Model: XTS 5000 M3
FCC ID AZ489FT4864
MPN: H18SDH9PW7AN
UHF Band 450-512 MHz
